Emergency Firemen Communication System

The system is used to provide a two-way duplex mode of emergency communication between the master control station and different Firemen Call station located at different locations in the building. The two-way communication system comprises of the following.

  • Master Control Station
  • Main Distribution Box with Power Supply

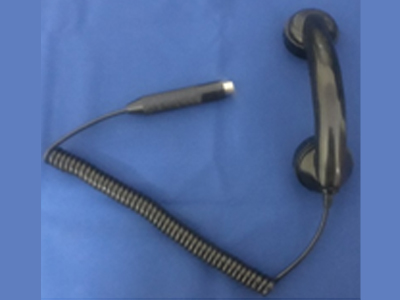

  • Firemen Handset

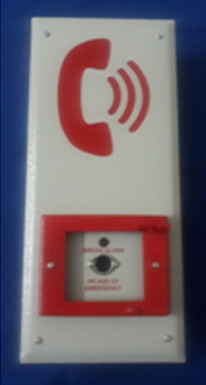

  • Firemen Call Point with Hammer and Chain

Product Specifications

  • Effective Duplex Communication
  • Enclosed in attractive Enclosure
  • Available in 10 to 90 Zone
  • 1.2 mm Thick CRCA Enclosure

Technical Specifications

Operating Voltage 12 V DC
Power Requirement 50 VA for 10 Zone
Audio Input 1 V
Hand Set Impedance 80 E
Model Number RE102
